Transparency in clothing tutorial!

    In this loooong ass tutorial i’ll explain you the technique i used while making my Mamé Blouse!

    I made this tutorial as if i was explaining it to someone who already has a great knowledge of Blender and S4S

    Also, made this specially for the chama @enriques4 who CRAVES to know jow to make this, ly!

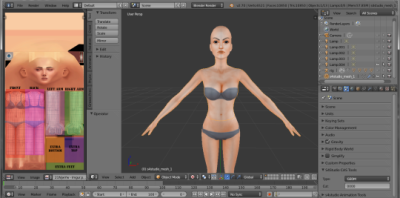

    1. Open your nude top on Blender and import your scratch mesh.

    2. Do all the weights, uv1 and vertex things you do when making a top, BUT waith till the end to make the uv map. For this part we will use @spectacledchic-sims4 UV Mapping guide :)

    3. For the UV mapping of the clothing I recommend using the parts of the hay, the part between the arms and the “extra bottom and top” part. You can also use some parts of the sim body IF its covered by other mesh or if its not covered with one part of the mesh that’s going to be transparent.

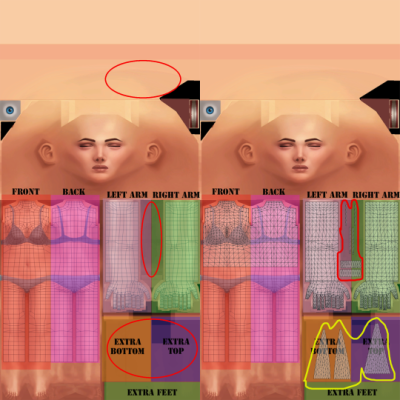

    As for my top UV Map I made it like this:

    4. Once you are done with all the morphing and UV mapping process, save you blend!

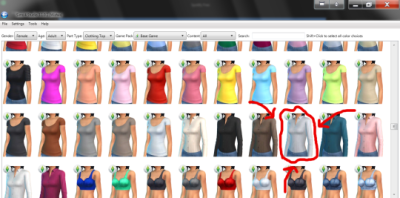

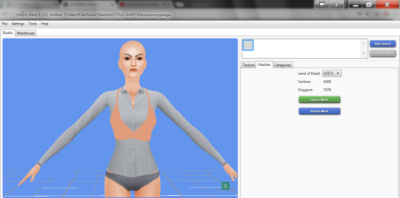

    5. Go into S4S and find this blouse. This one will be your main top package :)

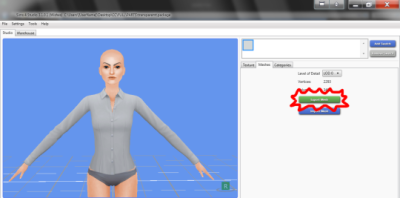

    6. Export the mesh and open it on Blender!

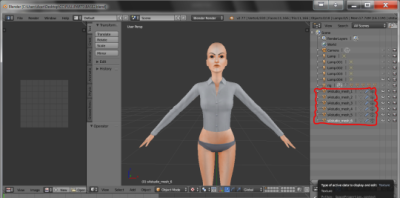

    7. Once in Blender, you’ll see that this mesh has 6 cuts! This is actually a great amount of cuts, since we’ll put different parts of our mesh in each one of them to make you top not have transparency issues.

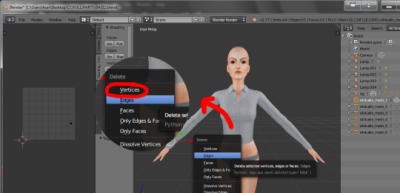

    8. What you’ll do now is go to each cut and delete all that its in each one. Press “X” and click “Vertices”.

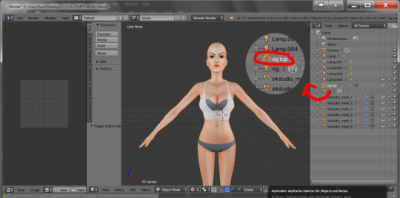

    9. Once its all done, append your top. I recommend you to change the name of this since you may confuse this with the other cuts :)

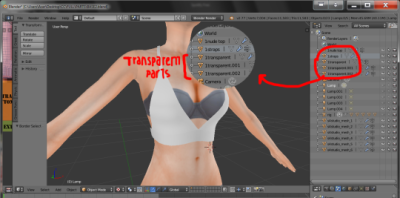

    10. Now, go into your top and separate the different parts of it. As for me I separated mine into the Nude Top, the Straps (the parts of the mesh from scratch that wont have transparency) and the transparent part of it.

    IMPORTANT: separate each part of the transparency part, so in this way we dont have any issues later. I separated it into the left boob, right boob and the back part.

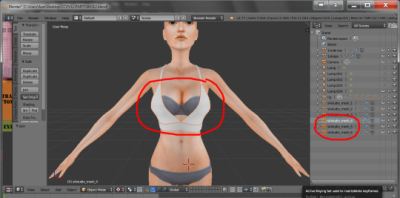

    11. Take the last 3 cut from shirt we exported and join each one with one part of the transparency part.

    12. After that, we’ll have left 3 cuts. What i did was: in cut number 3 i joined the straps part, in cut number 2 i joined the nude top and in cut number one i duplicated the nude top and join it into cut number 1.

    13. Once its done, save it, import it to S4S, make all your LODs but still dont make your textures.

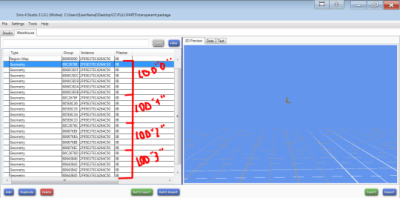

    14. Now go to the “Warehouse” tab. There you’ll find different “geometries”.

    The division of these is like this:

    - The First 6 ones are the LOD “0”

    - The next 5 ones are LOD “1”

    - The next 5 ones are LOD “2”

    - The last 5 ones are LOD “3”

    15. What we’ll do now is changing the shaders of the transparent cuts of our mesh.

    This is one of the essential parts of this tutorial, since without doing this, the “transparency” wont work. This shader and technique is used when making Alpha Hairs and Glasses.

                                  PAY ATTENTION ON THIS PAAAART!

    • The LODs we’ll change our shaders are 0, 1 and 3. ONLY these ones, we wont touch LOD 2 FOR ANYTHING IN THIS WORLD, OK? Well, lets keep going…
    • In each LOD (except LOD 2, this one IS UNTOUCHABLE), we’ll find the “Geometries” that show in the 3D preview the Transparent parts of the mesh.
    • Select the geometry and go to the “Data” tab, next to the 3D Preview one.

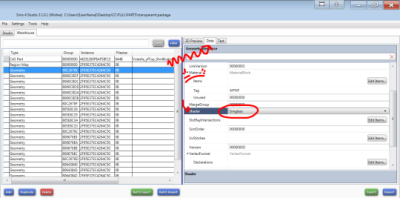

    • Now, Find the part that says “Material”. Then go to the part that says “Shader” and change it to “Simglass”.

    Repeat this process in each Geometry that is one part of the mesh that will be transparent. Do this in all the Geometries of each LOD, EXCEPT IN THE LOD 2, YOU ALREADY KNOW THE DRILL WITH IT.

      Save your package, you are almost done. Go grab a snack, you deserve it ;D

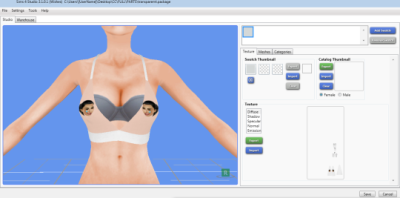

    16. Now to the last step, texturing! This part is all up to you! Play with the opacity of the parts you want transparent.

    As for me, I decided to make this, hehe.

    NO I WON’T SHOW MY SIM’S NIPPLES, YA NASTY.

    I went for transparent breast area, covering the nipples with some kimojis. I know this looks kinda trashy, but it’s all for the sake of the tutorial!

                              Now save your package and test it in game.

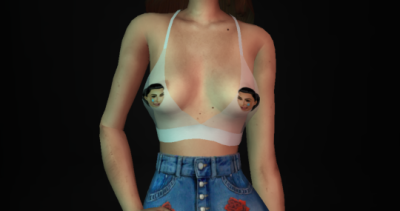

    And this is how it looks in game! It actually turned out to really great.

    I hope this tutorial helped you. This is my first time doing one of these, i’m not the best one at explaining so if you had any trouble at understanding dont bother to send me a message!

    Also you can download the top I made for this tutorial so you can have a better guide!

    Byeee! ♡
